Description

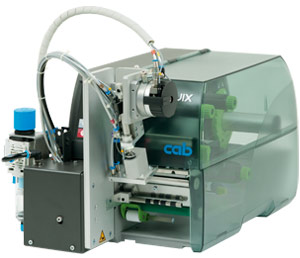

SQ 3200 attached to a SQUIX peel-off printer is economic, whether operated semi-automated or integrated to a manufacture plant.
Printed labels are set 45° to 95° to the horizontal by a rotary cylinder and applied automatically to an item by a short stroke cylinder.
Life cycles, pre-dispense, compressed air regulation, reliable processes and supporting air (Blow tube for supporting air not included in delivery) correspond to SQ 1000.
| Applicator | SQ 3200 |
|---|---|
| Operated with | SQUIX 2, SQUIX 4.3, SQUIX 4, SQUIX 4.3 M, SQUIX 4 M |
| Rotary cylinder | 45°- 90° |
| Stroke cylindermm max. | 30 |
| Depth F of a pad immersingmm max. | 5 |
| Weight packaging excludedkg | 4.5 |
| Consumption of powerW max. | 15 |
| Compressed airbar | 4.5 |
| Cycle rateapprox.1) | 20 labels/min |
Tamp-on pads, blow-on pads
They are manufactured according to the size of a label.
| Tamp-on pad | Blow-on pad | |||
|---|---|---|---|---|
| A3200-1100 | A3200-2100 | |||
| Operated with | SQUIX 2 | SQUIX 4.3, 4 | SQUIX 2 | SQUIX 4.3, 4 |
| Label widthmm | 4 – 63 | 10 – 116 | 10 – 63 | 10 – 116 |
| Label heightmm | 6 – 80 | 10 – 80 | ||
| Surface of an item | flat | |||
| State of an item at the moment a label is applied | at rest | at rest or in motion | ||
