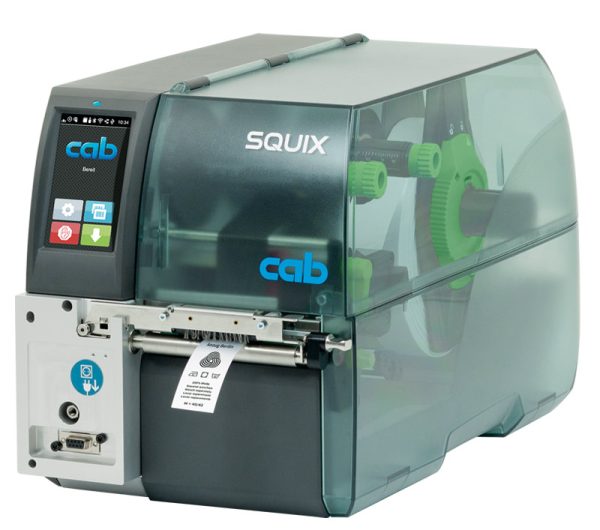

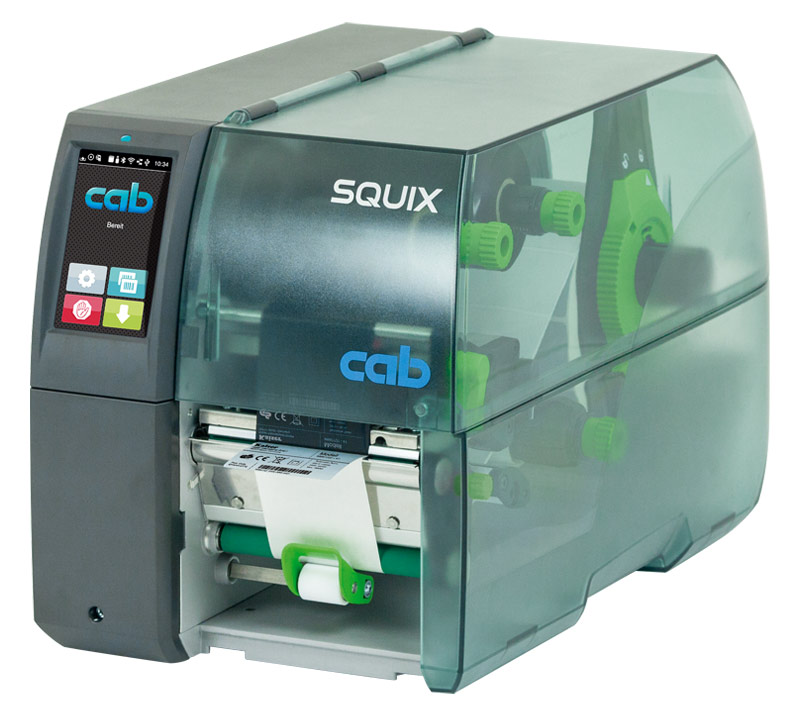

Label printers SQUIX 4 MT

Description

They find use in various areas of use. They have been developed with consistent focus on intuitive usability and highly reliable processing.

Print mechanics and chassis are made of high-quality materials and match perfectly in design and function. A wide range of peripherals and software enable user-specific solutions.

The rugged printers stand up to any demand, whether operated stand-alone, with a PC or in a network. Print jobs are performed quickly and labels are provided straight away thanks to a high-speed processor.

Label printers guiding materials in centered position and providing a separator

Basic unit

For textile operations

If operations require high heating, a ribbon may stick with the textile tape after printing. A draw roller separates the ribbon reliably from a material.

Labels and continuous materials wound on rolls or reels may be as well printed. Plungers do not have to be aligned for setting the width of a label. Adapted print rollers are provided for slim materials.

1.14 Label printer	SQUIX 4.3 MT	SQUIX 4 MT
Printable resolutiondpi	300	300	600
Print speedmm/s max.	300	300	150
Print width mm max.	108.4	105.7	105.7

Details

Technical details

Differences to other label printersguiding materials in centered position

1 Antistatic brush
It dissipates electrostatic charge after printing, in particular if synthetic materials are in use.

2 Separator
If operations require high heating, a ribbon may stick with the textile tape after printing. A draw roller separates the ribbon reliably from a material.

Control panel

Self-explanatory symbols simplify settings and enable printers be operated intuitive and easily.

1 LED: Power ON

2 Status bar: receive data, record data stream, prior warning to a ribbon ending, SD memory card / USB stick plugged, Bluetooth, WLAN, Ethernet, USB slave, time

3 Printer status: ready, pause, number of labels printed in a print job, label peeled off, awaiting external start signal

4USB port for plugging a service key or a memory stick, to transfer data to the IFFS memory

5 Operation

Cutter / perforation cutter: cutting
External rewinder: outside or inside winding
Tear-off mode / peel-off mode: printing a label
Applicator: printing and applying a label in individual steps

Jump Jump to menu

Reprint Reprint last label

Interrupt and continue print job

Stop Stop and delete all print jobs

Label feed

External control panel

If the control panel of a printer cannot be accessed, an

External operation panel additional external one can be plugged.

Same functionality as on the printer

Landscape or portrait mode

Operability as targeted, either on an external panel or on a printer

USB 2.0 Hi-Speed device for plugging a printer

1 LED: Power ON

2 USB port for plugging a service key or a mem

ory stick, to transfer data to the IFFS memory

3 cab provides specified USB cables for power supply. Lengths are 1.8 m to 16 m

Print heads

A print head can be replaced by any other one,

provided they are of equal width. They are detected by the CPU and calibrated.

Major data such as operational performances, maximum operational temperatures and heating are kept in memory by the print head. The data can be read at the premise.

Print heads provided for SQUIX 2, SQUIX 4 – 300, 600 dpi
sharp-edged print images
small fonts, graphics on typeplates
printing on materials that imply high energy needs

Print heads provided for SQUIX 4.3, SQUIX 6.3 – 203, 300 dpi
Print heads provided for SQUIX 8.3 – 300 dpi
durable, printing in harsh environments, direct thermal printing

All-purpose tool Assembly tool SQUIX It is provided close at hand on a unit for replacing components and assembling periphery.

Specifications

MATERIALS GUIDED IN CENTERED POSITIONTYPE	SQUIX 4.3 MT	SQUIX 4 MT
1.15
Print method: Thermal transfer
Direct thermal			–
Printable resolutiondpi	300	300	600
Print speedmm/s max.	300	300	150
Print widthmm max.	108.4	105.7	105.7
Initial print Distance to locating edgemm	centered
Material¹⁾
Paper, cardboard, synthetics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec
Direct thermal paper / cardboard			–
Shrink tube ready for use
continuous,pressed
Textile tape
Finishing Roll, fanfold
Roll diametermm max.	205
Core diametermm	38.1 – 76
Winding	outside or inside
Label Widthmm	4 – 110
Height no label backfeed²⁾mm at least	4
label backfeed²⁾mm at least	6
Thicknessmm	0.03 – 0.6
Liner Widthmm	9 – 114
Thicknessmm	0.03 – 0.16
Continuous Widthmm	9 – 114
Thicknessmm	0.05 – 0.5
Weight (cardboard)g/m² max.	300
Shrink tube Width ready for usemm max.	114
continuous, pressedmm	4 – 85
Thicknessmm max.	1.1
Ribbon³⁾ Color layer	outside or inside
Roll diametermm max.	80
Core diametermm	25.4
Lengthm max.	600
Widthmm	25 – 114
Printer dimensions, weights
Width x Height x Depthmm	252 x 288 x 460
Weightkg	10
Label sensors, position indicators
Transmissive sensordetecting	labels, punch marks, materials ending, print marks on translucent materials
Reflective sensor from below or topdetecting	labels, materials ending, print marks on non-translucent materials
Sensor distance to locating edgecentered position mm	0 – 55
Material passagemm max.	2 (5 are an option)
Interfaces
RS232C 1,200 to 230,400 baud/8 bit
USB 2.0 Hi-Speed device for plugging a PC
Ethernet 10/100 Mbit/s	LPD, RawIP printing, SOAP web service, OPC UA, WebDAV, DHCP, HTTP/HTTPS, FTP/FTPS, TIME, NTP, Zeroconf, SNMP, SMTP, VNC
1 USB host on the control panelfor plugging	a service key, an USB stick, USB WLAN stick, USB Bluetooth adapter
2 USB hosts on the back of a unitfor plugging	a keyboard, barcode scanner, an USB stick, USB WLAN stick, USB WLAN stick with a rod antenna, USB Bluetooth adapter, external control panel
USB host, 24 VDC, for peripheral plugging
Digital I/O interface providing 8 inputs and 8 outputs
Operating data
Voltage	100 – 240 VAC, 50/60 Hz, PFC
Consumption of power	<10 W in standby / 100 W in typical operation
Temperature / humidity: Operation	+5 – 40°C / 10 – 85% not condensing
Stock	0 – 60°C / 20 – 85% not condensing
Transport	–25 – 60°C / 20 – 85% not condensing
Approvals	CE, FCC Class A, ICES-3, cULus, CB, CoC Mexico, CCC, EAC, BIS, BSMI, KC-Mark
Control panel
Color LCD touchscreen Diagonal″	4.3
Resolution Width x Heightpx	272 x 480
