Label marker LM+

MIVA Price

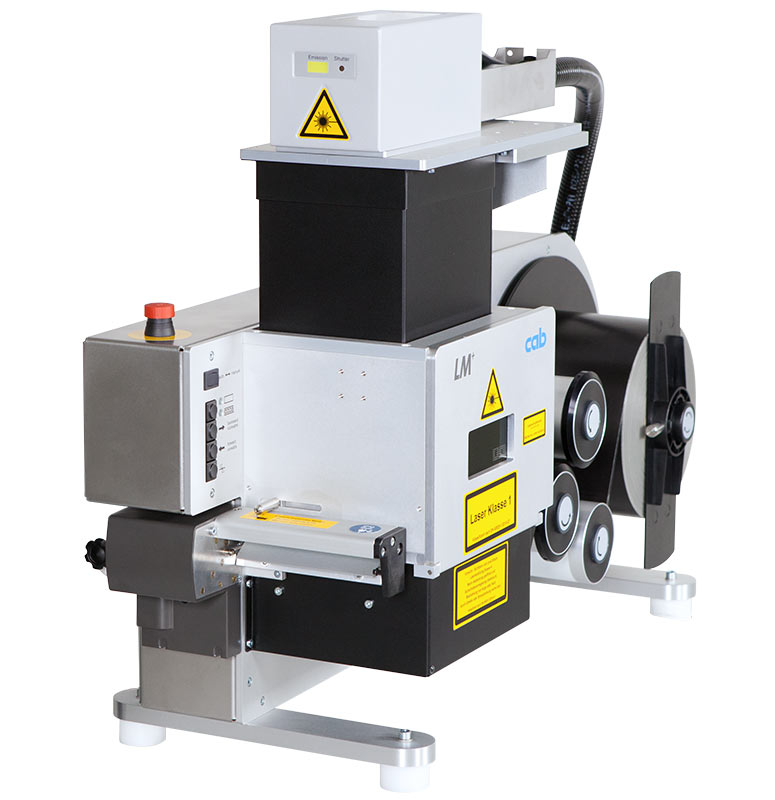

Label marker LM+
Mark and cut labels in different sizes out of continuous material

The laser label marker allows precise marking of labels of different sizes straight from the roll and cut them out without the need of additional tools.

After the marking, labels made of laser markable foil can be separated by a cutter or externally rewound.
Category: Tag:
Description
The laser label marker allows precise marking of labels of different sizes straight from the roll and cut them out without the need of additional tools.

After the marking, labels made of laser markable foil can be separated by a cutter or externally rewound.

Accessories

  • 4.3 PC in a 4 height units 19’’ rack
  • 4.4 Monitor 23.8’’
  • 4.5 Standard keyboard, optical mouse
  • 4.6 Keyboard with trackball
  • 5.3 External rewinder
  • 5.4 Hose set
  • 5.5 Mobile cart
  • 5.6 Console
  • 5.7 Monitor column
  • 6.1 Extraction and filter system AF5

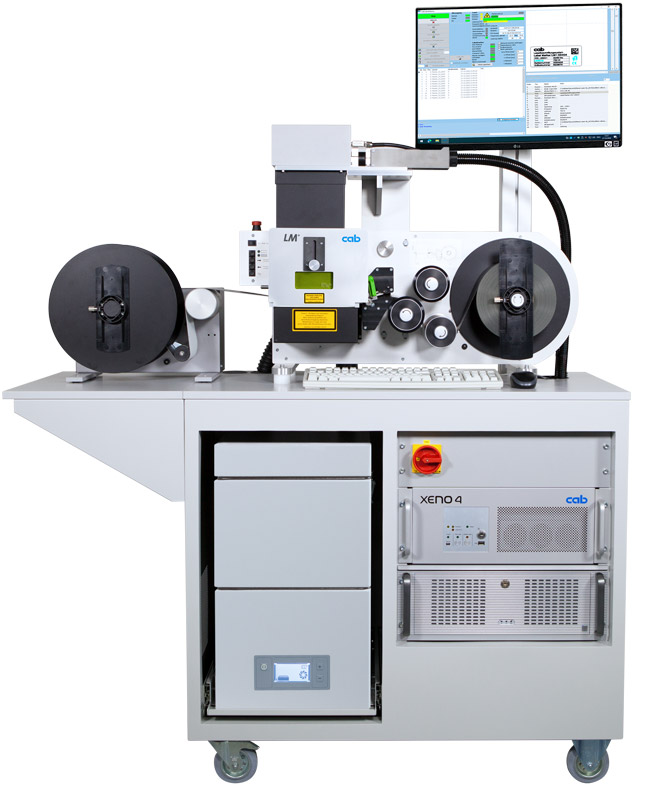

Laser label marker LM+

with a mobile cart, an external rewinder on the console, a column with a monitor attached and an  extraction and filter device AF5













Video: LM+ Laser Label Marker

The laser label marker allows to precisely mark and cut labels in different sizes out of continuous material without the need of additional tools.

Technical Details

4.1 4.2
Laser label marker LM+160.1 LM+254.1
Work area W x H x D mm 160 x 5 x 190
Positioning accuracy mm 0.2
Transport speed mm/s 200
Interior light LED
Material Label or continuous material
thickness mm 0.055-0.3
weight up to g/m2 500
width mm  25-120
Label height max. mm 180
Roll outer diameter max. mm 300
core diameter mm 76
winding outside / (inside on request)
Lens Type 160.2 254.2
Marking field mm 112 x 112 120 x 170
Working distance mm 210 ± 8 310 ± 8
Dimensions and weight
W x H x D mm 440 x 520 x 802
Laser protection window WxH mm 100 x 50
Machine stands Ø mm 50
Suction nozzle Ø mm 50
Weight kg 22
Operating data
Operating voltage/frequency 100-240 VAC ~ 50/60 Hz
Power ON/OFF
Laser safety class EN60825-1 Class 1
Approval CE
Operation panel
LED indicators Continuous material
Labels
Push buttons Material feed forwards
Material feed backwards
Cut
Switches Automatic / manual
E-Stop
Monitoring
Safety circuits closed
Wipe-down roller locked
Material In marking position / no material
Interfaces
Interlock/E-Stop FL+
Serial RS232C FL+ Con5
External E-Stop
Cutter

Video

Brochure
