Peel off the label forward from its upper edge and stick it to the product from the shortest distance possible. Particularly suitable for larger labels as the adhesive side is already directed to the product.
Two operation panels
Basic version
Label feed
automatically after removal of the label
With operation panel
Label counter from 0 – 9,999
Label feed
slow / fast
after pressing the push button or
automatically after removal of the label or
by an external signal on the rear side of device
Three widths of material for HS and VS
Details
1 Operation panel
Use the operation panel to select various operating modes. This allows setting the feed supply rate to either “slow” or “fast”. Labels are fed automatically after removal, by pressing a control key or upon an external signal. A counter indicates how many labels have already been removed.
2 Label sensor
For round labels, the sensor will be set to the label’s A apex. You can adjust the pre-dispense height B to between 4 and 18 mm.
3 Label brake
This puts the base material under tension so as to ensure that the labels will be dispensed safely. It can be swivelled away easily when the material is changed.
4 Liner rewinder
Simply insert and clamp the backing tape immediately behind the peel-off edge. It is wound up completely by the strong motor.
5 Roll holder
The label rolls are guided by the stable roll retainer.
Specifications
Print Method:
Thermal inkjet; Dye & Pigment ink
Print Resolution:
Up to 1200 x 4800 dpi
Print Speeds:
Draft Mode: 4.5” (114mm) per second Normal Mode: 1.8” (46mm) per second High Quality Mode: 0.8” (20mm) per second
Print Head:
Replaceable Multi-Use Print Head
Ink:
Separate Cyan, Magenta and Yellow Ink Tanks, Process Black
Colors:
16.7 million
Color Matching:
ICC color profiles for all Primera-supplied media. Ability to add custom ICC color profiles for other media types.
Print Width:
0.5″ (13mm) to 8.25″ (210mm)
Media Width:
1.5″ (38mm) to 8.375″ (212mm)
Media Types:
Roll-fed pressure-sensitive labels, roll-fed tags, fan-fold labels or tag
Media Sensing:
Moveable see-through sensor for die-cut labels; reflective sensor for labels and tags with black stripe; can use continuous and pre-printed labels and tags
Supply Roll:
6″ (152mm) maximum diameter on 3″ (76mm) core.
Ink Level Warning:
Calculates actual number of prints remaining based upon ink usage of graphics being printed (patent-pending)
Indicator Lights:
Power, Pause, Ink
Controls:
Pause, Load/Feed, Unload
Operating Systems:
Windows 7/8/10+ (Coming Soon – MacOS 10.11+)
Data Interface:
USB 2.0 and Wired Ethernet
Label Design Software:
Seagull Scientific Bartender® UltraLite Software version included; can also be used with most other popular label design & graphics programs
17.25″W x 9.1″H x 17.25″D (438mmW x 231mmH x 438mmD)
Included:
Bartender Ultralite software for Windows, non-perforated 4”X3” Extreme White Gloss Polyester starter roll, print head and CMY ink tanks
LABEL SPECIFICATIONS
Max
Min
Label width:
8.25″ (209mm)
0.5″ (13mm)
Liner/media width:
8.375″ (212mm)
1.5″ (38mm)
Label height/length:
24″ (609mm)
0.5″ (13mm)
Gap between labels:
10″ (254mm)
0.1″ (2.5mm)
Width of thru-hole opening:
0.5″ (13mm)
0.25″ (6mm)
Gap Sensor Adjustment Range:
1.9″ (48mm)
0.2″ (5mm)
Reflective/Black Mark Width*:
N/A
0.1″ (2.5mm)
Max Outer Diameter (OD):
6″(152mm)
N/A
Inner Core Diameter (ID):
3″ (76mm)
3″ (76mm)
Total Thickness (Liner + Label)**:
0.010” (10 mil)
N/A
Distance from edge of media to edge of label:
Printer driver assumes 2 mm gap. However, this is adjustable via the left margin offset.
* The Reflective/Black Mark should be opaque to infrared light. The mark should be between the labels. The end of the mark should correspond with the beginning of the label.
** This is the recommended maximum. There are two factors that determine whether the printer will accept any particular stock thickness.
echnical data
COMMON TECHNICAL DATA
HS
VS
WITH OPERATION PANEL “+”
Dispensing direction
horizontal
vertical
Label orientation – print image
bottom leading
top leading
Labels
on rolls, standard or die cut, fan-folded optional
Materials
paper, textiles, plastics also transparent
Feed supply rate up to mm/sec
200
100 / 200
Label roll: outside diameter up to mm
200
Label roll: core diameter mm
38 – 76
Label roll: weight max. kg
4
Label roll: winding direction
outside or inside
Rewinder
Liner outside diameter up to mm
155
Label sensor
Scanning
leading edge of label
Distance to leading edge mm A mm
5 – 55
Pre-dispense: B mm
4 – 18
Operation panel
Device indicator “ON”
green LED
LED and label counter “ON”
Device indicator Error
red LED
Label counter, flashing
Selector switch: label feed automatic or on demand
–
Control button with label feed on demand
–
Selector switch feed supply rate
–
slow / fast
LCD display label counter
–
0 – 9999
Control button reset label counter
–
Display dispensing via external signal
–
Connections
Peripheral connection for peel-off on demand via external signal
–
Inlet connector for non-heating apparatus
Power supply
Power switch
On / Off
Operating data
HS and VS
mobile
Power supply
100 – 240 V ~ 50/60 Hz
16,5 – 25 VDC
Power consumption operation / stand by
max. 30 W / 5 W
Temperature / humidity: operation
+5 – 40°C / 10 – 85% non-condensing
Temperature / humidity: storage
+0 – 60°C / 20 – 80% non-condensing
Temperature / humidity: transport
– 25 – 60°C / 20 – 80% non-condensing
Noise level
< 60 dB
Approvals
CE, FCC Class A, ICES-3, cULus
Device specific dimensions
HS60 and VS60
HS120 and VS120
HS180+ and VS180+
Width of labels including liner mm mm
8 – 65
20 – 120
80 – 180
Height of labels one-wide mm
5 – 300
8 – 600
20 – 600
Height of labels multi-wide mm
5 – 110
8 – 110
20 – 110
Device dimensions
Height x depth without material mm
250 x 360
250 x 360
250 x 360
Width mm
180
230
300
Weight kg
3,3
3,6
4,
Accessories
Battery pack HS/VS 120
To allow mobile labelling at every place where you do not have any socket outlet for power supply.
HS and VS allow dispensing more than 5,000 labels using a single battery charge.
Brake for fanfold labels
The brake is used to tightly guide and precisely print fanfold material.

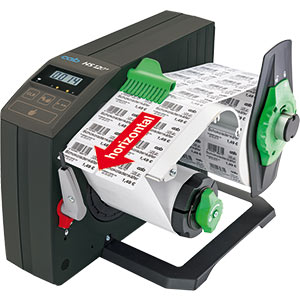

vergrößernHS Horizontal dispensing direction
for label rolls with bottom leading print image
vergrößernVS Vertical dispensing direction
for label rolls with top leading
